| 起源の場所: | 中国製 |
| ブランド名: | Maxpower/OEM |
| 証明: | CB, CE, KC, ROHS,UN38.3,UL |
| モデル番号: | 7242126 3200MAH |
| 最小注文数量: | 1000pcs |
|---|---|
| 価格: | negociate |
| パッケージの詳細: | 8PCS/BLISTER PALET、15BLLISTER PALLET/CTN |
| 受渡し時間: | 標準的な状態を一致する10-30days |
| 支払条件: | L/C、T/T、Western Union |
| 供給の能力: | 200000pcs/日 |
| 材料: | リチウム ポリマー、純粋なコバルト | サイズ: | 7.2*42*126mm |
|---|---|---|---|
| 電圧: | 3.7V | 正味重量: | 145g |
| 容量: | 6000mah | 抵抗: | ≤1.5mΩ |
| レート: | 60c | 最大レート: | 120C |
| 応用: | UAV、無人ドローン |
45C High Rate Li Ion Polymer Battery Pack 7242126 3200mah 3.7V UAV drone
KC CB UL certification
1.The battery draw and size info.
2. Cell specification and safty performance.
| No | Item | Specification | Remark |
| 1 | Nominal Capacity | 3200 mAh | 0.2 C discharge |
| 2 | Minimum. Capacity | 3060mAh | 0.2 C discharge |
| 3 | Nominal Voltage | 3.7 V | |
| 4 | Charge Voltage | 4.2 ± 0.02 V | |
| 5 | Charge Current Standard charge : | 0.2C ( 640 mA) | |
| 6 | Rapid charge : | 1.0 C ( 3200 mA) | |
| 7 | Charging Time Standard charge : | 7.5 hours (Ref.) | |
| 8 | Rapid charge : | 1.5 hours (Ref.) | |
| 9 | Standard dicharge current | 640mA | |
| 10 | Cont.. Discharge Current | 120000mA | |
| 11 | Burst. Discharge Current | 45.0 C ( 144A ) | ≤ 3 S |
| 12 | Cutoff Voltage | 3.0 V | |
| 13 | Resistance | ≤ 1.5 mΩ | 1kHz AC Method |
| 14 | Weight (Approx.) | 145 g | |
| 15 | Dimensions(T.W.H.)Thickness(厚度): | 7.1 max mm | |
| 16 | Width: | 43.0 max mm | |
| 17 | Length: | 128 max mm | |
| 18 | Operating Teerature Charge : | 0 ~ 45℃ | |
| 19 | Discharge teerature : | 0 ~ 45℃ | |
| 20 | Storage Teerature | Short period less than 1month | 0℃~35℃ |
| Long period more than 1month | 10℃~25℃ |

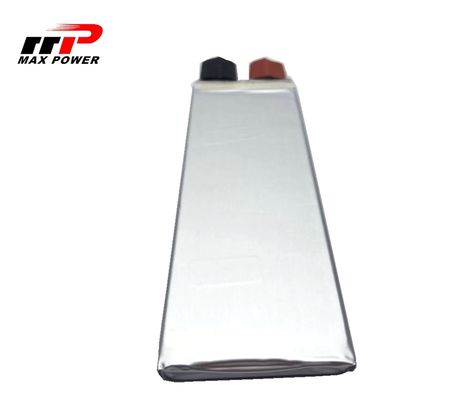

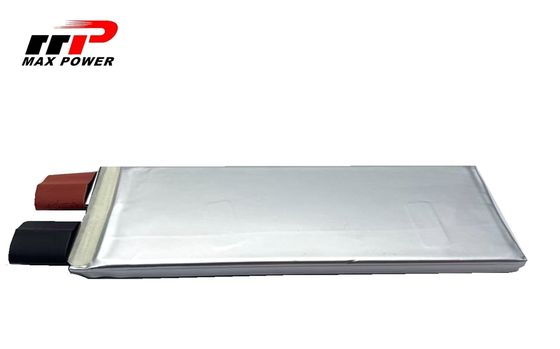

3. PIC of battery.
The application of the polymer battery:Unmanned drone, RC cars, RC boat,RC tools,Robot..
Waranty:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement.
Q&A:
1. Q:How to start the cooperate?
A: Lets start with our sale orders. In 3-5days will be ready the sales, then you test.We make the standard according
the data sheet which we give.Once you confirm the quality, we can talk for further.
2. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strict test and high teerature,high voltage life ageing
as well in every single pc,
3. Q: What will be the packing?
A: We are using individual box for each battery cell and pallet packing for shipping.
For more please contact me freely, wish my 14 years in battery area experience can help you in your project.
